فيلم ذاتي اللصق

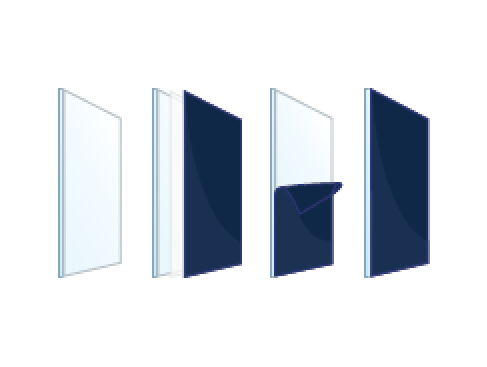

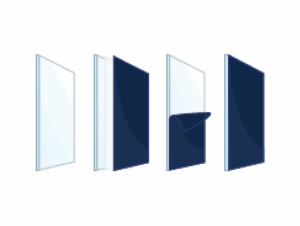

يتم طلاء فيلم الكريستال السائل المصبوغ ذاتيًا بمادة لاصقة (لاصق AB) على جانب واحد من الفيلم، والذي يستخدم للالتصاق بالزجاج المستهدف.
| Technical characteristic | Self-adhesion film | ||
| switching period | 0.1s | ||
| operating temperature | -20ºC～80ºC | ||
| film thickness | 140um | ||
| width | 1840mm | ||
| customizable | size, shape, busbar location; holes and recesses | ||
| compatibility | PVB EVA TPU | ||
| glass tape | annealed,tempered, clear, low lron/Ultra Clear, IG Units, Other |
||
| pattern design | yes | ||
| stock temperature | -20ºC～60ºC | ||
| stock humidness | lower than 60% | ||
| Electrical characteristic | Self-adhesion film | ||
| controler | Mini, Flex, Multiplex,Custom | ||
| operating | Fade,ON/OFF,Dimmer | ||
| operating voltage | 36-65VAC | ||
| frequency | 22,25,30,50,60Hz | ||
| energy consumption | 2w/m² | ||
| UV block(on) | 99% | ||
| visible light transmittance (on) | 50-65 | ||
| visible light transmittance (off) | 5 | ||
| optical performance | Self-adhesion film | ||
| total transmittance (off) | 1% | ||
| total transmittance (on) | 36-58% | ||
| Haze(on) | 3.50% | ||
